Digital Matter
G62 LoRaWAN®
Robust and ultra-rugged vehicle and heavy equipment tracking device with inputs/outputs for fleet management, equipment monitoring on LoRaWAN® networks
- High-precision GPS/GLONASS tracking device
- Weatherproof and ultra-rugged IP67 Housing
- Internal Backup Battery in case of loss of power or tampering
- 1 x Analog Inputs, 2 x Digital Inputs, 1 x Switched Ground Digital Output, 1 x Ignition Digital Input
- On-device Odometer Readings
Features
CONNECTIVITY
| LoRaWAN® | Highly sensitive radio receiver is available in 868 or 902 – 928MHz versions for global LoRaWAN® connectivity. |
| LoRaWAN® Regions | AU915 AS923 EU868 IN865 KR920 RU864 US915 |
LOCATION
| Module | uBlox EVA-M8 |
| Constellation | Concurrent GPS / GLONASS |
| Channels | 72 Channel High Sensitivity Receiver |
| Tracking Sensitivity | -167dBm tracking performance |
| *Location Accuracy | ~2.0m CEP, 50%, 24 hours static, GPS, SBAS, -130dBm, > 6SVs |
| Low Noise Amplifier | GPS signals are boosted by a unique low-noise amplifier (LNA) allowing operation where other units fail |
| LoRaWAN Gateway Geolocation Fallback | LoRaWAN gateway geolocation fallback when there is no GNSS |
POWER
| Input Voltage | 8-36V DC (max) |
| Self-Resetting Fuse | Built-in self-resetting fuse makes installation simple and safe. Stringent automotive power “load dump” tests are conducted to ensure operation in the harshest electrical systems. |
| Operating Current | ~25/50mA when moving ~150mA battery charging |
| Sleep Current | <1mA |
| Back-Up Battery | 1100mAh LiPo internal backup battery pack |
MECHANICS / DESIGN
| Dimensions | 126 x 80 x 27 mm (4.96 x 3.15 x 1.06″) |
| Weight | 171 g (6.03 oz) |
| Housing | Ultra-Rugged Nylon Glass |
| IP Rating | IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures. |
| Installation | 7 wire harness 1m Length |
| Operating Temperature | -20°C to +60°C |
| GPS Antenna | Internal |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement |
| Diagnostic LED | Diagnostic LED signifies operation status |
INTERFACES
| Analog Inputs | 1 x 0-30V Analog Input, Auto Ranging, 12-bit ADC 0-5V range: 1.22mV precision 0-30V range: 7.32mV precision |
| Digital Inputs | 2 x Digital Inputs with configurable pull-up/down 0-48V DC input range On/Off thresholds: Pull-up enabled: low at 0.8V, high at 1.0V Pull-down enabled: low at 2.0V, high at 2.4V |
| Digital Outputs | 1 x Switched Ground Digital Output Can be toggled via downlink. |
| Ignition | 1 x dedicated ignition Digital Input 0-48V DC 5V on/off threshold |
SMARTS
| Geofence Alerts | The server can use device location to create geofences and alerts if an asset enters or leaves designated locations |
| Run Hour Monitoring | Calculate run hours and distance traveled (odometer) to understand and optimize asset utilization |
DEVICE MANAGEMENT
| Flexible Configuration | Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application. |
| Configuration App | Manage device firmware updates and parameters via DM-Link provisioning tool. Some parameters can be changed via downlink. |
INTEGRATION
| Third-Party Integration | Easy integration with comprehensive documentation and a flexible and open payload format |
SECURITY
| Data Security | LoRaWAN® networks use AES-128 Encryption so your data is protected |
WARRANTY
| Manufacturer’s Warranty | Two-year manufacturer’s warranty. Exclusions apply. |
CERTIFICATIONS
| Please contact us for a full list of compliance specifications and documentation for your region. | CE (DoC) |

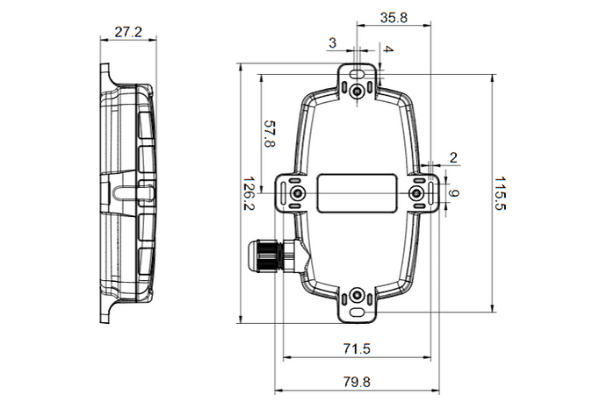

DIMENSIONS
*Positioning accuracy specifications are provided by the GNSS supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
